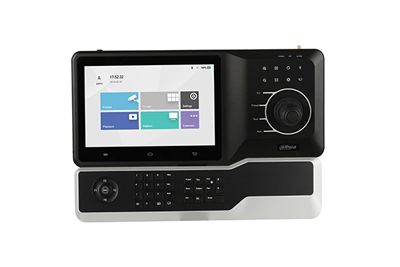

HD Tinklinė kameros valdymo klaviatūra, 10.1" TFT LCD, Wi-Fi, 4 HDMI, H.265, H.264, 4K

Features: Keyboard to Control • DAHUA Standalone DVR • DAHUA (Network) High Speed Dome • DAHUA High Speed Dome • Central Management Platform • Network Video Server • RS232, RS485 & Network Connections(Wi-Fi) • Four Dimensional Joystick Control of PTZ Functions • Support 4K decoding live view • Support 4CH HDMI output • Support snapshot and recording to U-disk • Support Video-Wall display control • Support bidirectional talk • Preset Position, Auto Scan, Auto Pan, Auto Tour & Pattern Control • Auxiliary Functions, OSD and operation guides Control • Includes an extension keypad module Technical Specifications: System • Main Processor Dual-core Braswell Processor • Operation System Embedded LINUX 4.2.0 Display • Video Output 4×HDMI(extension decoding display) • Stream Type H.265, H.264, MPEG, Nonstandard • Decoding Capability 4CH@12MP(20fps)/4CH@4K(30fps)/6CH@5MP(30fps)/8CH@4MP(30fps)/10CH@3MP(30fps)/16CH@2MP(30fps) • Stream Type H.265, H.264, H264H, H264B, MJPEG, MPEG4, SVAC, SmartH.264 and non standard • Display split 1/4/9/16 • Screen 10.1" TFT LCD touch screen (1280*800) Audio & Alarm • Audio Input/Output 1 pair 3.5mm jack, support bidirectional talk • Loudspeaker 1 • Alarm In 4, High-low level • Alarm Out 4 (3 relay, 1 12V_1A) General • Network Interface 2×RJ-45 port (10/100/1000M)), Wi-Fi • USB Interface 2 USB3.0, 2 USB2.0 • Wi-Fi Support (2.4GHz) • RS485 1 for ptz control • RS232 2, debugging and recorder control • RS422 1(reserved) Environmental • Power Supply DC12V, 4A • Power Consumption 25W(max), 18W(standby) • Working Temperature -10°C ~+55°C • Working Humidity 10%~95% • Atmosphere Pressure 86kpa~106kpa • Dimension Host: 425mmx194mmx59mm (W×D×H) • Mini Keypad: 421mmx105mmx26mm (W×D×H) • Weight 3.73kg(exclude package)
