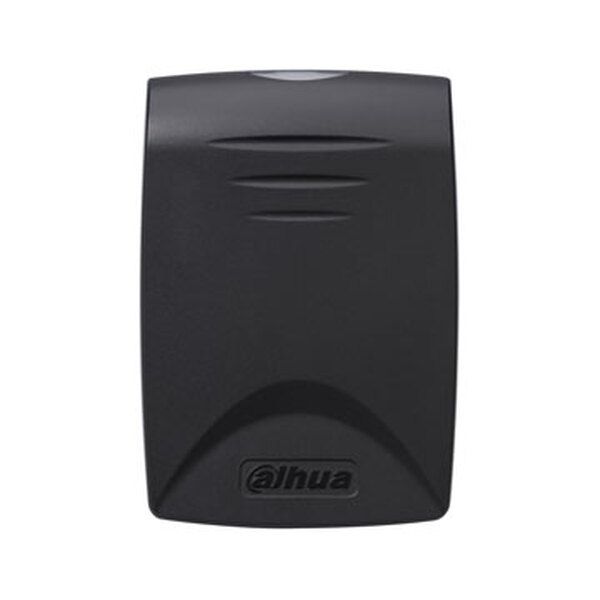

Atstuminių kortelių skaitytuvas RFID

Features: • RS-485 protocol • Default IC (Mifare) card • Water-proof design • Built-in 1 relay and can control door lock itself • Watch dog function ensure device free from halting • Beep and indicator • Surface mounted installation Technical Specifications: System • Main Processor 8 Bit Output port • Output Relay x 1(Door lock) Read • Read Format 13.56MHz(Mifare)/125KHz(EM, Optional) • Read Range 6-8cm (max.) • Response time <0.1s Function • Tamper Alarm Yes • Water-proof IP67 Interface • To Controller RS485 Wiegand Genreal • LCD Display Blue backlight • Beep Tone Buzzer • Ingress protection IP55 • Power Supply 9-15VDC/100mA • Working Environment -30?-+60? • Working Humidity =95% • Dimension(W× D× H) 72mm*102mm*18mm • Weight 0.2Kg
