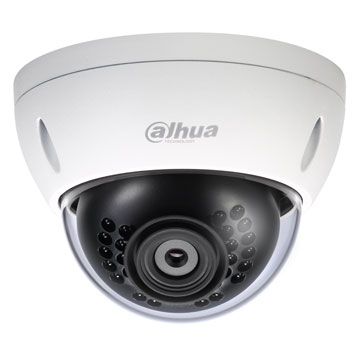

4K IP kam.8M su IR, HDBW4800EP

Features:  • 1/2.3” 4K progressive scan CMOS • H.264&MJPEG dual-stream encoding  • 7fps@4K(3840×2160)  • DWDR, Day/Night(ICR), 3DNR,AWB,AGC,BLC • Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS • 4mm fixed lens • Max. IR LEDs Length 20m • IP66, IK10, PoE  Technical Specifications:  Camera • Image Sensor1/2.3” 4K progressive scan CMOS • Effective Pixels: 3840(H)x2160(V) • Scanning System: Progressive • Electronic Shutter Speed:Auto/Manual, 1/3(4)~1/10000s • Min. Illumination: 0. 1Lux/F1.6 (Color), 0Lux/F1.8(IR on) • S/N Ratio: More than 50dB • Video OutputN/A Camera Features • Max. IR LEDs Length20m • Day/Night: Auto(ICR)/Color/B/W • Backlight Compensation: BLC / HLC / DWDR • White Balance: Auto/Manual • Gain Control: Auto/Manual • Noise Reduction: 3D • Privacy Masking: Up to 4 areas Lens • Focal Length4mm • Max ApertureF1.6(F1.6) • Focus ControlManual • Angle of ViewH: 80° • Lens Type: Fixed lens • Mount Type: Board-in Type Video • CompressionH.264/ MJPEG Resolution: 4K(3840×2160)/1080P(1920×1080)/720P(1280×720)/D1(704×576/704×480) /CIF(352×288/352×240) • Frame Rate Main Stream 4K(1~7fps)/3M/1080P/ (1 ~ 25/30fps) • Sub Stream: D1/CIF(1 ~ 25/30fps) • Bit Rate: H.264: 20K ~ 16Mbps Audio • CompressionN/A •Interface N/A Network Ethernet: RJ-45 (10/100Base-T) • Wi-FiN/A • Protocol: IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPoE, DDNS, FTP, IP Filter, QoS, Bonjour • CompatibilityONVIF, PSIA, CGI • Max. User Access: 20 users • Smart PhoneiPhone, iPad, Android, Windows Phone Auxiliary Interface • Memory SlotN/A • RS485: N/A • Alarm: N/A • PIR Sensor Range: N/A General • Power SupplyDC12V, PoE (802.3af) • Power Consumption<7W • Working Environment-30°C~+60°C, Less than 95% RH • Ingress Protection: IP66 • Vandal Resistance: IK10 • Dimensions: F110mm×81mm • Weight: 406g(531.8g with packaging) Features:  • 1/2.3” 4K progressive scan CMOS • H.264&MJPEG dual-stream encoding  • 7fps@4K(3840×2160)  • DWDR, Day/Night(ICR), 3DNR,AWB,AGC,BLC • Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS • 4mm fixed lens • Max. IR LEDs Length 20m • IP66, IK10, PoE  Technical Specifications:  Camera • Image Sensor1/2.3” 4K progressive scan CMOS • Effective Pixels: 3840(H)x2160(V) • Scanning System: Progressive • Electronic Shutter Speed:Auto/Manual, 1/3(4)~1/10000s • Min. Illumination: 0. 1Lux/F1.6 (Color), 0Lux/F1.8(IR on) • S/N Ratio: More than 50dB • Video OutputN/A Camera Features • Max. IR LEDs Length20m • Day/Night: Auto(ICR)/Color/B/W • Backlight Compensation: BLC / HLC / DWDR • White Balance: Auto/Manual • Gain Control: Auto/Manual • Noise Reduction: 3D • Privacy Masking: Up to 4 areas Lens • Focal Length4mm • Max ApertureF1.6(F1.6) • Focus ControlManual • Angle of ViewH: 80° • Lens Type: Fixed lens • Mount Type: Board-in Type Video • CompressionH.264/ MJPEG Resolution: 4K(3840×2160)/1080P(1920×1080)/720P(1280×720)/D1(704×576/704×480) /CIF(352×288/352×240) • Frame Rate Main Stream 4K(1~7fps)/3M/1080P/ (1 ~ 25/30fps) • Sub Stream: D1/CIF(1 ~ 25/30fps) • Bit Rate: H.264: 20K ~ 16Mbps Audio • CompressionN/A •Interface N/A Network Ethernet: RJ-45 (10/100Base-T) • Wi-FiN/A • Protocol: IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPoE, DDNS, FTP, IP Filter, QoS, Bonjour • CompatibilityONVIF, PSIA, CGI • Max. User Access: 20 users • Smart PhoneiPhone, iPad, Android, Windows Phone Auxiliary Interface • Memory SlotN/A • RS485: N/A • Alarm: N/A • PIR Sensor Range: N/A General • Power SupplyDC12V, PoE (802.3af) • Power Consumption<7W • Working Environment-30°C~+60°C, Less than 95% RH • Ingress Protection: IP66 • Vandal Resistance: IK10 • Dimensions: F110mm×81mm • Weight: 406g(531.8g with packaging)
